xeta 9 Debian Ethernet Radios

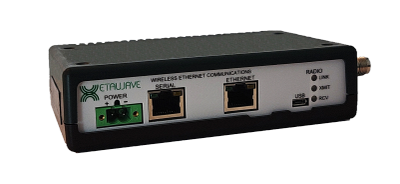

The Xeta9 Debian Ethernet radios are extremely capable and flexible industrial Frequency Hopping Spread Spectrum (FHSS) and Digital Transmission System (DTS) software defined radios supporting the unlicensed or both the licensed and unlicensed 900 MHz frequency bands. Based on the Debian operating system, the Xeta9 Debian radios are XetaWave’s latest generation.

The Xeta9 utilizes a XetaWave Dual Decode Digital Architecture which offers significant receiver performance. The radio supports multiple modulation schemes and features.  The MultiSpeed mode allows Endpoints operating at different RF data rates to communicate with a single Access Point to achieve optimal data throughput given the available channel size and RF environment. The Enhanced Multipoint (EMP) mode provides an increase in throughput and a decrease in latency over traditional modes and against competitive products while the MESH mode allows for frequency hopping peer to peer communications.

​

All Xeta9 radios from the XetaWave uTasker, Linux, Debian, and XetaEdge families are over-the-air compatible. The Xeta9 Debian radios support compatibility with the MDS 9710/9790, SD9, TransNet, and TransNext master radios and the Xeta9x9 Debian radio also supports full duplex operation.

• High Speed Over-the-air data rates from 10 kbps to 5.3 Mbps plus higher throughput with payload compression and when operating in Enhanced Multipoint.

​​

• Dual Band Models available in either the 902-928 MHz unlicensed ISM band or the 902-928 MHz unlicensed ISM band and 928-960 licensed MAS band.

​​

• Dual Mode Frequency hopping and single channel operations in the 902-928 MHz unlicensed ISM band and duplex or simplex operation in the 928-960 MHz licensed MAS band.​​​

​​

• Adjustable RF Output User selectable power output up to 1 Watt (+30 dBm) in ISM and 4 Watts (+36 dBm) in MAS.​​​

​​​

• Network Types Supports point to point, point to multipoint, enhanced multipoint, peer to peer, and Mesh networks.

​​

• Selective Modulation Multiple MSK, FSK, PSK, and QAM modulations and data rates available.

​​

• Interface Rich Supporting 2 Ethernet ports, 2 serial ports, and 1 USB 2.0 port.

​​

• Industrial Safe C1D2 certified and operational from -40°C to +75°C for hazardous industrial applications.

​

• Optional I/O Channels Independently configure 4 I/O as analog inputs, analog outputs, or digital inputs and 4 I/O as digital inputs or outputs.

​​

• Diagnostics monitoring of TX and RX statistics (noise, RSSI, more), voltage, and temperature over SNMP and Modbus.

​
